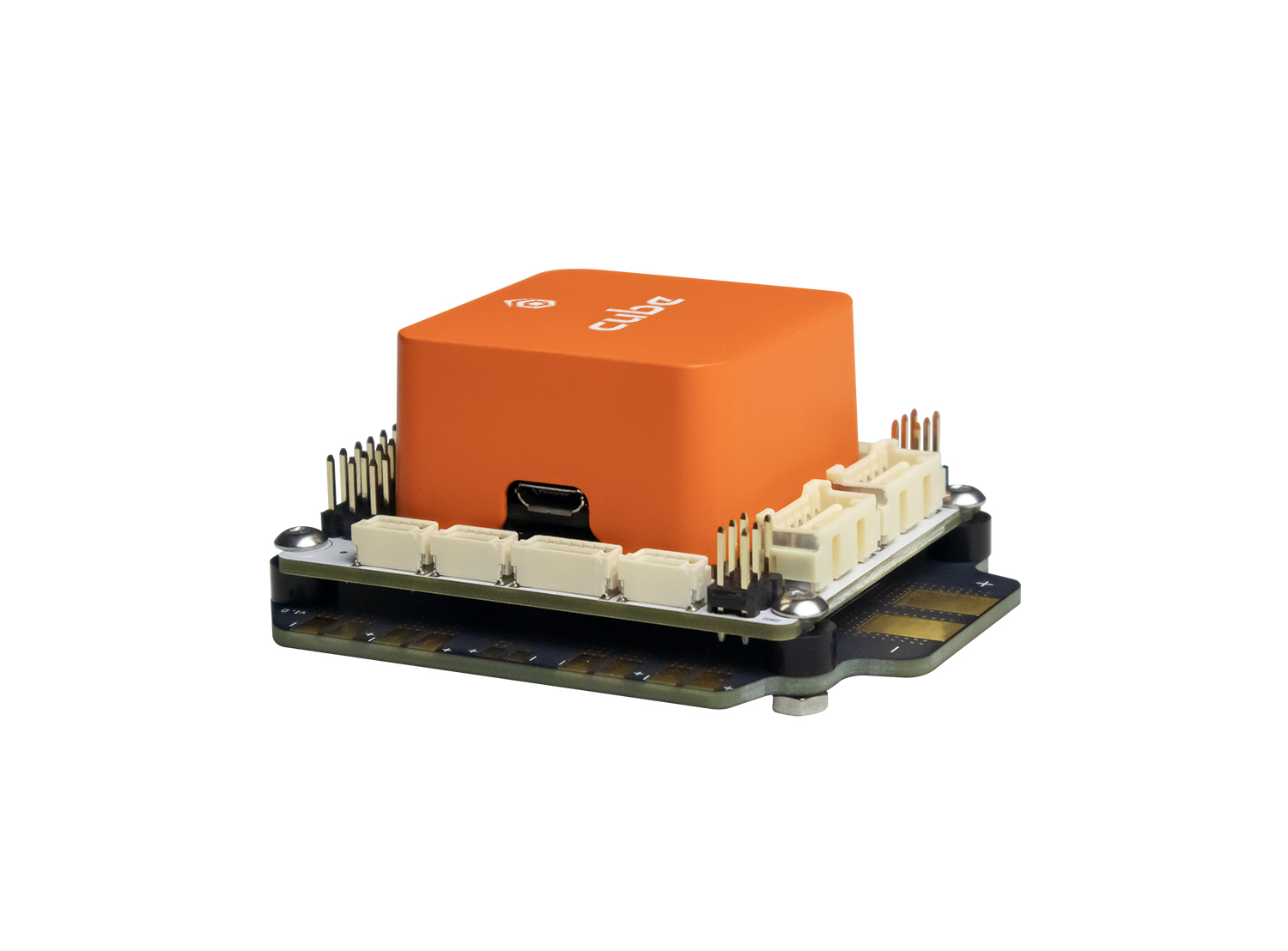

AIRBOT MINI CARRIER BOARD AND PDB COMBO
Important Pricing Update
Due to changes in USD exchange rates, product prices have been revised. Contact us for special offers.
Available on Backorder
Description

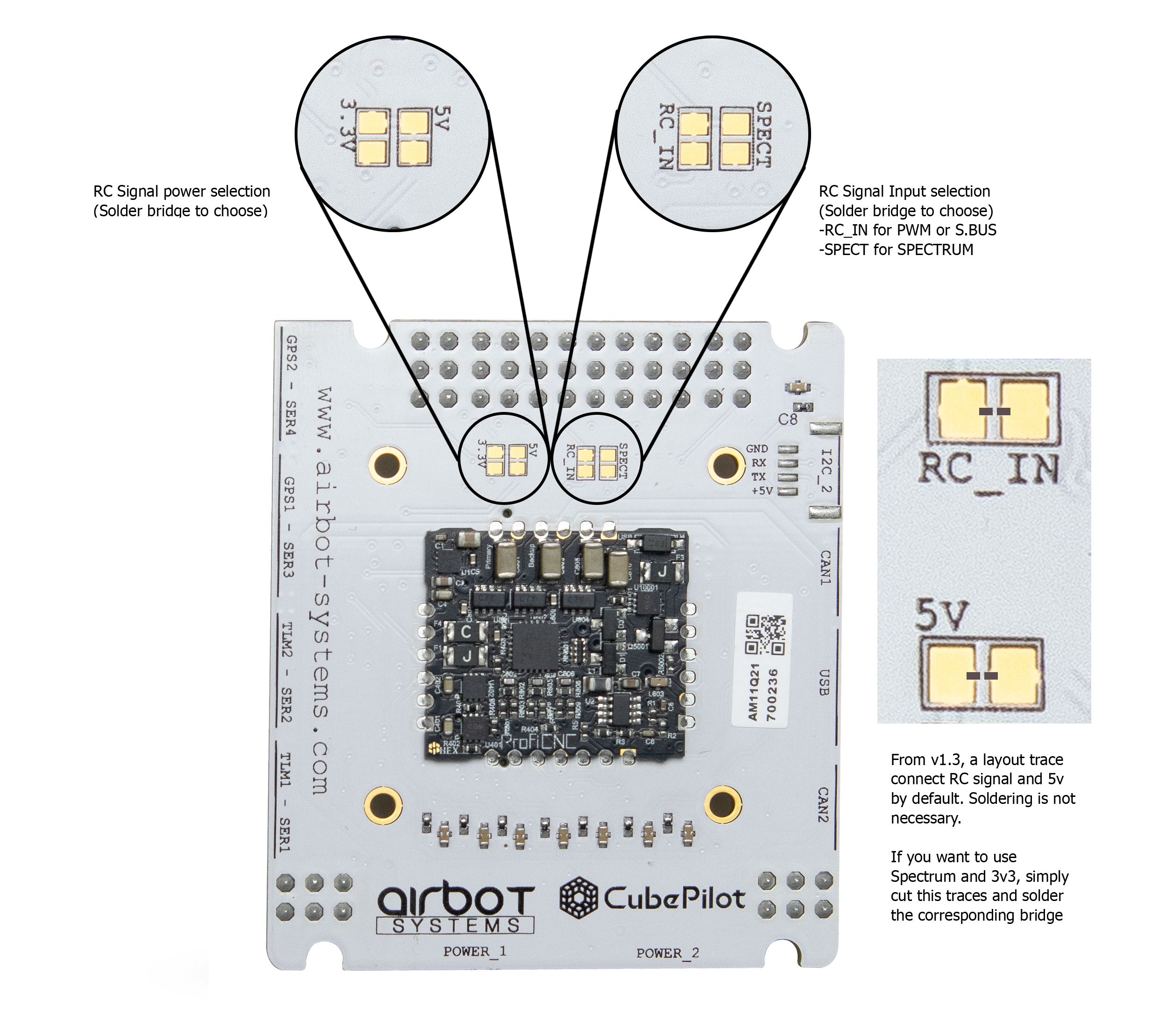

RC SIGNAL AND POWER SELECTION

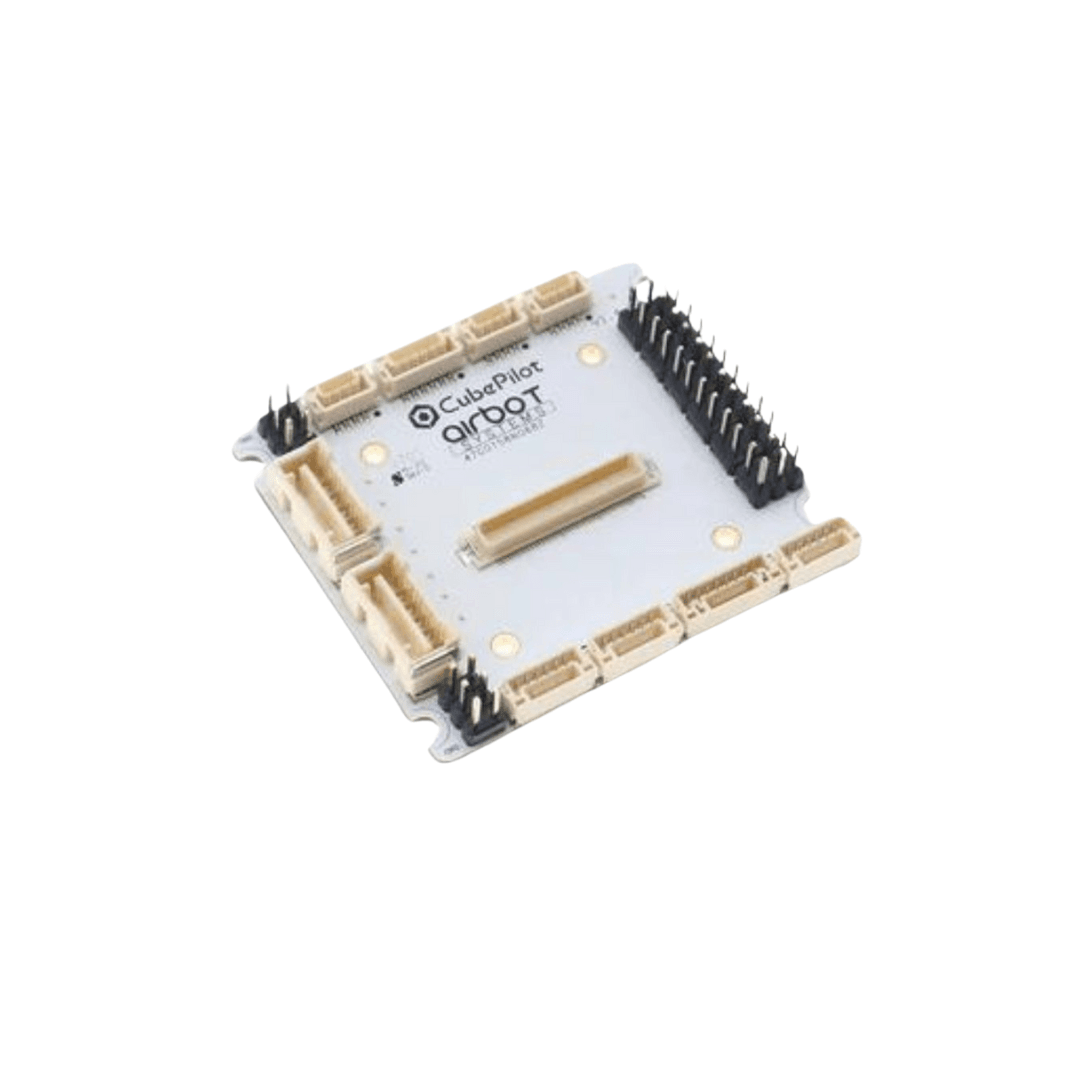

INTERFACES
PORT | CONNECTOR ON BOARD | CONNECTOR TO PLUG IN |
I2C_2 – CAN1 – CAN2 | JST GH : BM04B-GHS-TBT | GHR-04V-S |
USB – TELEM1 – TELEM2 – GPS2 | JST GH : BM06B-GHS-TBT | GHR-06V-S |
GPS1 | JST GH : BM08B-GHS-TBT | GHR-08V-S |
POWER1 – POWER2 | Molex CLIKMATE : 502443-0670 | 502439-0600 |
*All connectors are the same as Cube Standard carrier board

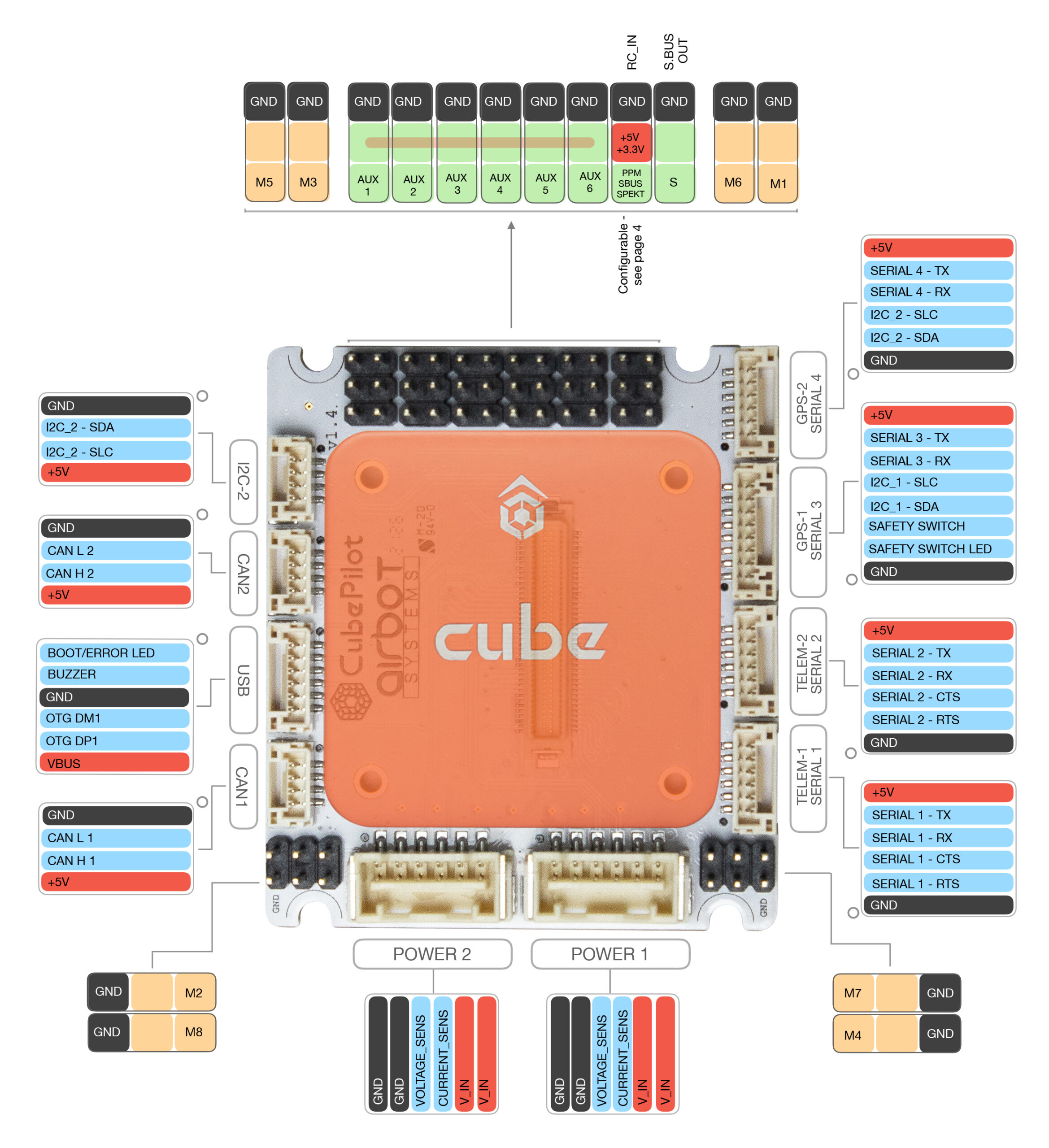

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? PINOUT
RC SIGNAL AND POWER SELECTION

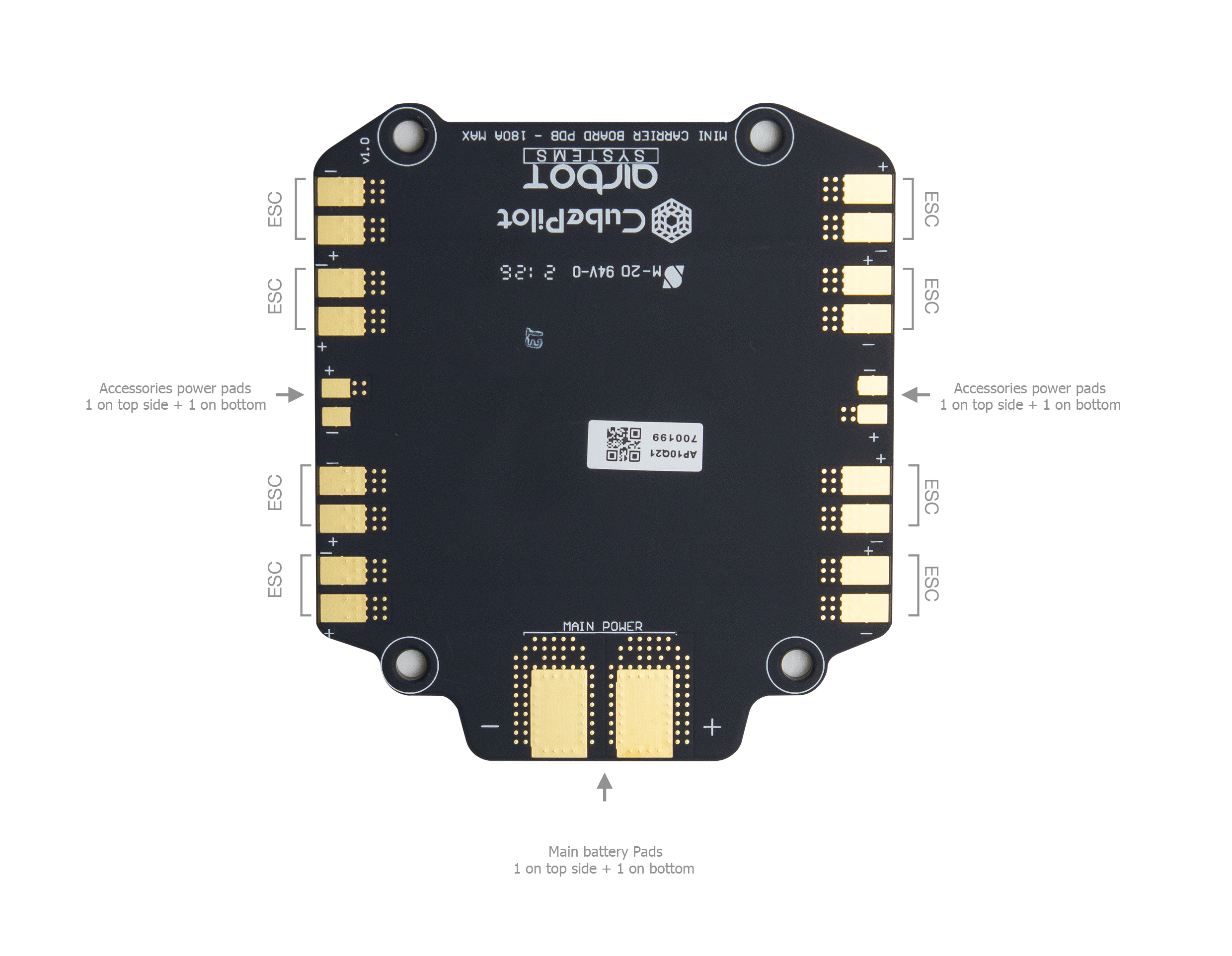

POWER DISTRIBUTION BOARD (optional)
The Airbot Systems Power Distribution Board Set can be installed directly under Airbot Systems Mini carrier board set. The PDB allows up to 180A through ESC interface and four pairs of low power pads (2 on top/ 2 on bottom). The mounting hole are aligned with Airbot Systems carrier board, so the board can be stacked together while separated by small nylon spacers
ATTENTION ! : The PDB can not be attached to any conductive materials. Beware to distance from any conductive material by
When using nylon spacers or insulations(e.g PlastiDIP), remember to leave enough spacing distance away from conductors.
INSTALLATION DIAGRAM
Features
● Dual power inputs (redundant power with automatic switch to the second power source when first one fails)
● Easy to install on drone (see the mounting pattern above)
● Power distribution & voltage protection (providing current to each connector)
● Motor PWM signal distribution (up to 8 motors – distributed on corners)
● Standard 2.54mm servo PPM/S.BUS/Spectrum RC input (+5v/+3.3v selectable power from carrier board)
● AUX VCC pins are connected together. This allows powering the AUX rail externally
