Mauch 085: 4-14S BEC Pixhawk 2.1 ₹4,300.00 excl. GST
Share
Mauch 085: 4-14S BEC Pixhawk 2.1

Mauch 085: 4-14S BEC Pixhawk 2.1

Important Pricing Update

Due to changes in USD exchange rates, product prices have been revised. Contact us for special offers.

in Mauch
Sku: EL-38-1223

₹4,300.00 excl. GST

In Stock

M.R.P.: ₹5,074.00 Incl. GST

  • Output 5.3V / 3A -> +/- 0.05V.
  • Input 4-14S LiPo / max. 60V.

Warranty
Warranty Upto 1-Year

Category: Brand:
5 days replacement policy on manufacturing defects Know More
Upto one year warranty Know More
Enquire Now Know more
Description

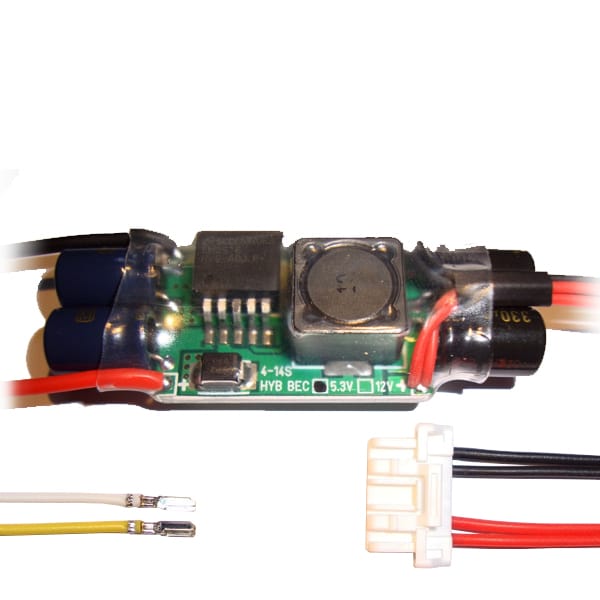

  • This BEC is an switching power supply and in series an linear LDO (LM1764A) to remove the ripple. Due to the component selection, this BEC get?s only warm during operation (LDO only 0.35V dropout voltage).
  • Input and output is protected by Panasonic FC / FM capacitors.
  • Input 4-14S LiPo / max. 60V.
  • Output 5.3V / 3A -> +/- 0.05V.
  • 20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2)
  • 2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sence.
  • 54mm x 21mm x 14mm / 17g with cables and shrinking tube.
Additional Information
Weight17 g
Dimensions20 × 20 × 20 cm
